Smartbatterycharger

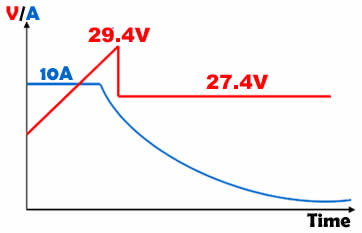

SPCS10B Name: Smart Battery charger chart(PCS10B)
Modle: PCS10B
Weight: 4.1Kg
Dimension(mm): 182*320*145

FEATURE:

  • Implements a three-stage charging algorithm.
  • Charges 24 volt sealed ,flooded and deep cycle batteries used in cars ,trucks, farm equipment, boats and commercial applications .
  • Short circuit and polarity protection .
  • Switch-mode DC power source
  • Dc output is from 3.0-30v adjustable
  • It also can charger 6V and 12V battery.
  • Current is up to 10 amps continuous
  • Clear and accurate output indicator
  • Short circuit and polarity protection .
  • Heavy-duty aluminium case with alloy carry handle
  • CE and Electrical authority approved


SPECIFICATION:

Input: 230-240V A.C 50/60HZ 400W

Battery Charger

  • Charger Voltage:24V
  • Charger Capacity:17Ah-250Ah
  • Charge Current:10A(max)
  • Protection Mode:short circuit and reverse polarity protection

DC Power Supply

  • Output Voltage:3.0-30V adjustable
  • Output Current:0~10A
  • Ripple Voltage: ¡Ü100mV
  • Protection Mode:overload and short circuit protection
